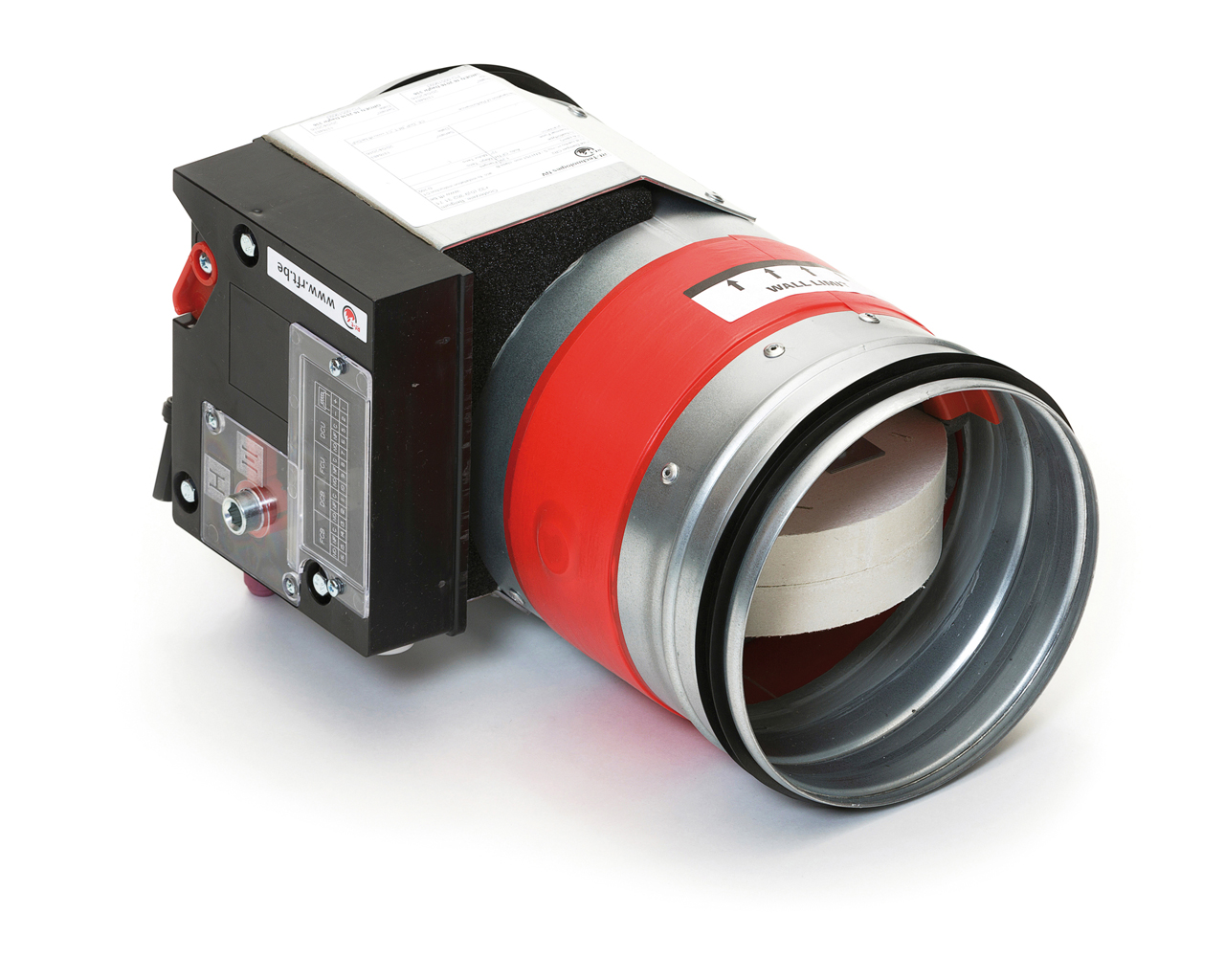

Fire damper 120 min. KEN-LOK (CR2C)
The CR2C Fire damper has 120 minutes of fire resistance according to EN1366-2 and EN13501-3. The activation temperature of the fusible link is 72° C.
| Item code | Stock | d1 | l | l1 | l2 | lp | x | Box # | Pallet # | Weight | ||
| CR2C200 | - | 200 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 6.90 | ||
| CR2C250 | - | 250 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 8.00 | ||
| CR2C315 | - | 315 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 11.00 | ||
| CR2C355 | - | 355 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 13.00 | ||
| CR2C400 | - | 400 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 16.00 | ||
| CR2C450 | - | 450 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 18.00 | ||
| CR2C500 | - | 500 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 21.00 | ||
| CR2C560 | - | 560 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 24.00 | ||
| CR2C630 | - | 630 | 285 | 205 | 80 | 45 | 50 | 1 | 1 | 28.00 | ||
